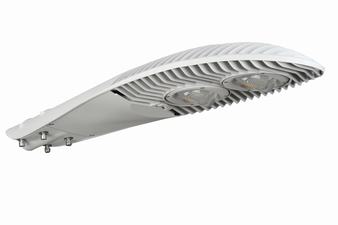

TUV COB Listado LED luces de calle

TUV COB Listado LED luces de calle

Power: 30-180W

Voltage: 90-305VAC

Lumens: 3000-18000lm

Color: 2700-3500K/3500-5500K/5500-6500K

Beam Angle: 130°/140°

Warranty: 60 Months



Product Overview:

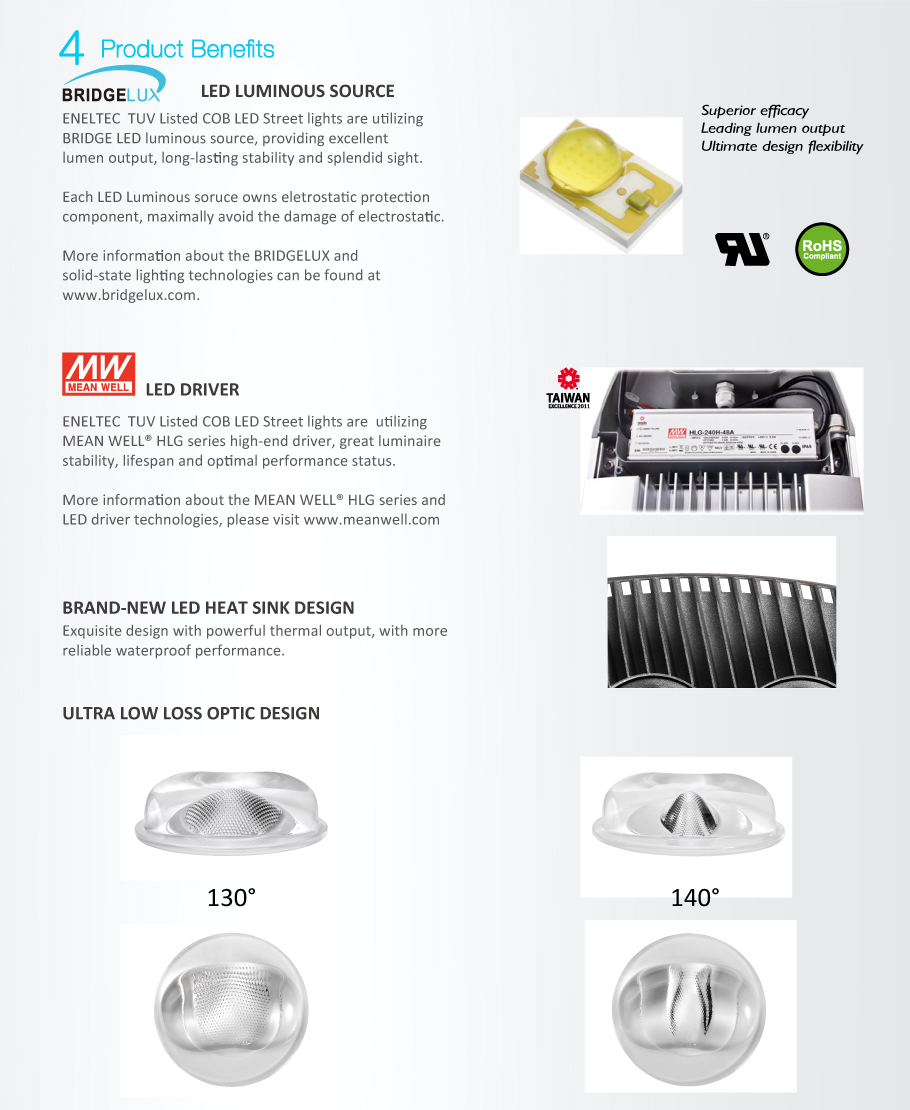

Un diseño elegante con nuevo módulo Eneltec tercera generación, más eficiente BRIDGELUX LED fuente luminosa y de alta conductor MEAN WELL LED confiable que los productos a la luz más rentable de calle del LED disponibles en la actualidad.

TUV COB Listado LED luces de calle

TUV COB Listado LED luces de calle

TUV COB Listado LED luces de calle

TUV COB Listado LED luces de calle

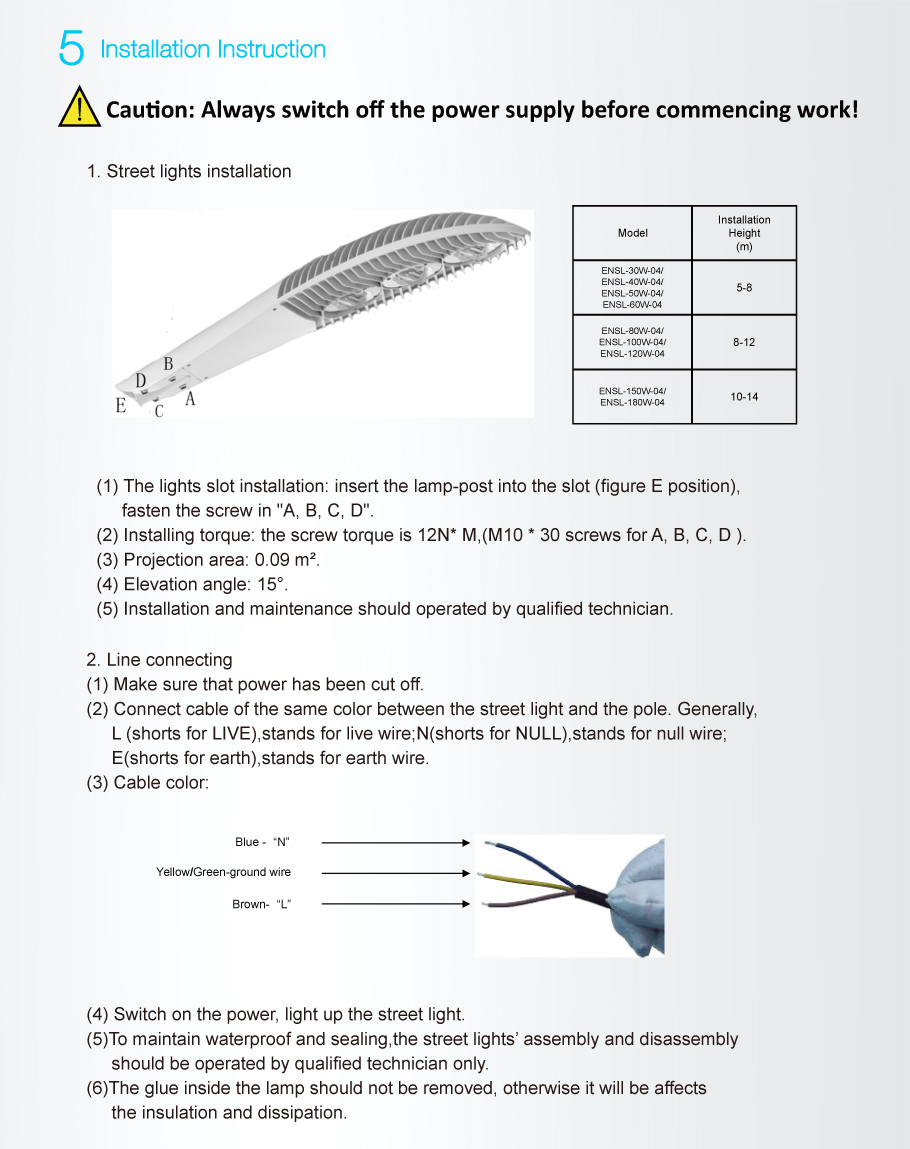

TUV COB Listado LED luces de calle de instrucciones de instalación:

(1) La instalación de luces de ranura: insertar el poste de luz en la ranura (posición figura E), apriete el tornillo en el "A, B, C, D".

(2) Instalación de par: el par de tornillo es 12 N * M, (M10 * 30 tornillos para A, B, C, D).

(3) Área de proyección: 0,09 m.

(4) Ángulo de elevación: 15 °.

(5) La instalación y el mantenimiento deben operado por un técnico cualificado.

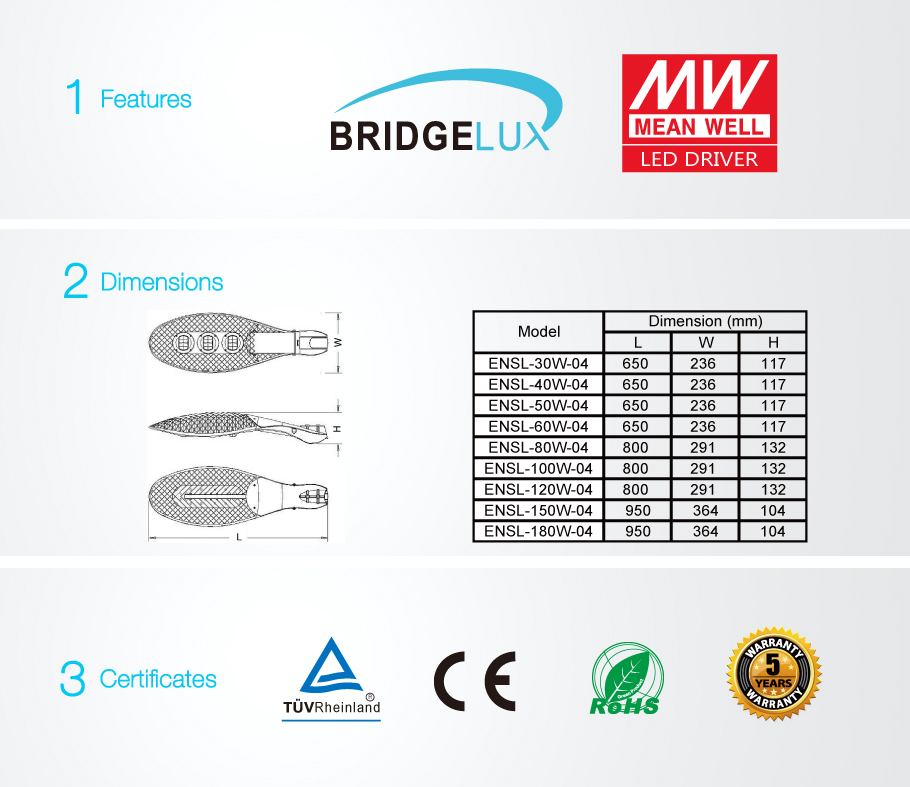

Specifications:
No. Pictures Model No. Power
(W)		 Lumen Output
(LM) 		 Beam
Angle		 Input
Voltage		 Color
1 　TUV COB Listado LED luces de calle ENSL-30W-04 30 3000 130°/140° 90-305VAC 2700-3500K/
3500-5500K/
5500-6500K
2 　TUV COB Listado LED luces de calle ENSL-40W-04 40 4000 130°/140° 90-305VAC 2700-3500K/
3500-5500K/
5500-6500K
3 　TUV COB Listado LED luces de calle ENSL-50W-04 50 5000 130°/140° 90-305VAC 2700-3500K/
3500-5500K/
5500-6500K
4 　TUV COB Listado LED luces de calle ENSL-60W-04 60 6000 130°/140° 90-305VAC 2700-3500K/
3500-5500K/
5500-6500K
5 　TUV COB Listado LED luces de calle ENSL-80W-04 80 8000 130°/140° 90-305VAC 2700-3500K/
3500-5500K/
5500-6500K
6 　TUV COB Listado LED luces de calle ENSL-100W-04 100 10000 130°/140° 90-305VAC 2700-3500K/
3500-5500K/
5500-6500K
7 　TUV COB Listado LED luces de calle ENSL-120W-04 120 12000 130°/140° 90-305VAC 2700-3500K/
3500-5500K/
5500-6500K
8 　TUV COB Listado LED luces de calle ENSL-150W-04 150 15000 130°/140° 90-305VAC 2700-3500K/
3500-5500K/
5500-6500K
9 　TUV COB Listado LED luces de calle ENSL-180W-04 180 18000 130°/140° 90-305VAC 2700-3500K/
3500-5500K/
5500-6500K
